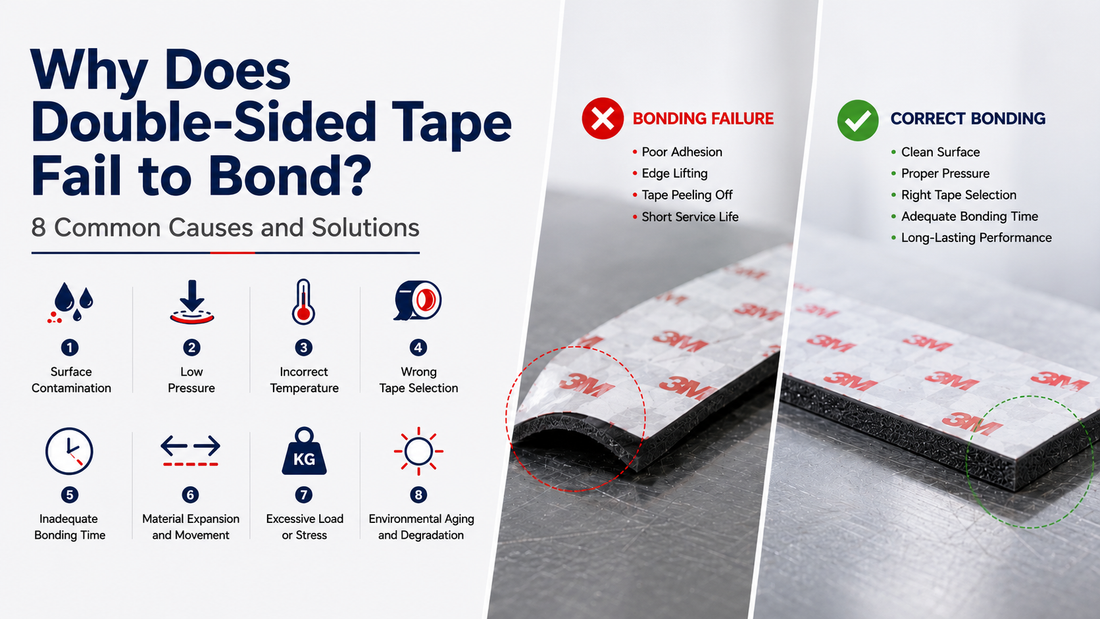

Why Does Double-Sided Tape Fail to Bond? 8 Common Causes and Solutions
By Vincent Shen | Industrial Tape Solutions | Technical Guide
Estimated reading time: 4-6 minutes
Double-sided tape usually fails because the adhesive did not make full contact with the surface, the substrate is difficult to bond, the application process was not controlled, or the selected tape cannot handle the real working conditions. Before changing to a stronger tape, check the surface, pressure, temperature, dwell time, joint design and environment.
Quick checks before replacing the tape?
- Is the surface clean, dry and free from oil, dust, silicone or release agent?
- Is the material a low-surface-energy plastic such as PP, PE or TPO?
- Was enough uniform pressure applied across the full bond area?
- Was the tape applied within the recommended temperature range?
- Was the part loaded, packed or tested before the bond developed strength?
- Is the joint exposed to peel force, heat, moisture, chemicals or movement?
1. Surface contamination
Problem: Oil, dust, fingerprints, polishing compound, silicone and release agents can block contact between the adhesive and the substrate. The surface may look clean but still carry a weak contamination layer.
Recommended action: Use a compatible cleaning method, clean lint-free cloths and complete drying before bonding. For heavy oil or silicone, use a validated cleaning or surface-treatment process.
2. Low surface energy substrate
Problem: PP, PE and some TPO plastics resist adhesive wet-out. The tape may feel tacky at first but lift later under heat, vibration or edge stress.
Recommended action: Confirm the exact substrate grade. Select an adhesive designed for low-surface-energy plastics, or evaluate primer, corona, plasma or flame treatment.
3. Insufficient pressure
Problem: Pressure-sensitive adhesive needs firm pressure to flow into microscopic surface valleys. Light hand pressure often leaves incomplete contact, especially on textured or uneven surfaces.
Recommended action: Use a roller, press or fixture to apply firm, uniform pressure over the complete bond line. Document the pressure method in the work instruction.
4. Wrong application temperature
Problem: Low temperature makes many adhesives too firm to wet out properly. Excessive temperature can make the adhesive too soft and reduce process consistency.
Recommended action: Condition both tape and parts before use. Check the actual substrate temperature, not only room temperature.
5. Early loading
Problem: Bond strength often builds over time. If the part is bent, packed, shipped or tested too soon, the adhesive may be stressed before it reaches useful strength.
Recommended action: Set a defined dwell time before loading, testing or shipment. Use temporary fixtures when parts have spring-back.
6. Peel or edge-lifting stress
Problem: Tape performs best when load is spread across the bond area. Exposed edges, sharp corners, curved parts and spring-back can start progressive lifting.
Recommended action: Increase bonding area, round tape corners, protect exposed edges and redesign the joint to reduce peel force.
7. Thermal expansion and moisture movement
Problem: Metal, plastic, glass and coatings expand at different rates. Temperature cycles and moisture can create repeated stress at the adhesive interface.
Recommended action: Review the complete temperature and humidity cycle. Consider acrylic foam tape or foam-backed tape when movement and stress absorption are required.
8. Wrong tape construction
Problem: Thin PET tape, tissue tape, PE foam tape, acrylic foam tape and transfer adhesive behave very differently. Thickness and initial tack alone are not enough for selection.
Recommended action: Define substrate, surface finish, bonding area, load, temperature, exposure and required life before choosing the tape. Confirm with representative samples and testing.
How to identify the failure mode
After separation, inspect both surfaces before cleaning them. Where the adhesive remains often reveals the real cause.
|
Observed failure |
Possible cause |
Next check |
|
Substrate looks clean |
Adhesive failure at surface |
Contamination, surface energy, pressure, temperature |
|
Adhesive remains on both sides |
Cohesive failure |
Load, heat, chemicals, dwell time |
|
Foam or carrier tears |
Carrier failure |
Tape construction, thickness, mechanical stress |
|
Paint or coating pulls away |
Weak substrate/coating |
Coating adhesion and surface preparation |
|
Failure starts at edge |
Peel stress or ingress |
Edge pressure, corner shape, spring-back, sealing |
A practical tape-failure investigation checklist
Record the facts before changing several variables at once. A controlled investigation should include:
- Exact tape identification, batch number, storage conditions and shelf-life status.
- Exact substrate material, grade, supplier, coating and surface texture.
- Cleaning materials, wipe method, drying time and operator sequence.
- Substrate and room temperature at application.
- Applied pressure, roller or fixture, pressure duration and assembly speed.
- Dwell time before testing, packing, transport or loading.
- Bonding area, tape width, joint geometry and edge condition.
- Actual service load, including peel, shear, vibration, shock and part spring-back.
- Exposure to heat, cold, humidity, water, UV, oil, plasticiser or cleaning chemicals.
- Failure location and photographs of both separated surfaces.
- A control sample prepared under known good laboratory conditions.
Frequently asked questions
Why does tape stick at first and then fall off?
Initial tack can hold a part temporarily, but later failure may come from poor wet-out, early loading, peel stress, heat, moisture, plasticiser migration or the wrong adhesive system.
Is thicker double-sided tape always stronger?
No. Thickness can help gap filling and stress absorption, but strength also depends on adhesive chemistry, bonding area, joint design and load direction.
Can alcohol always be used for cleaning?
No. IPA/water is common on many compatible surfaces, but some plastics, coatings or contaminations need a different approved process.
What information is needed for a tape recommendation?
Provide the exact substrates, surface finish, dimensions, bonding area, temperature range, load direction, environment, expected life and test requirements.
Conclusion
Reliable tape bonding is a controlled system, not just a peel-strength number. When double-sided tape fails, start with surface condition, application pressure, temperature, dwell time, joint design and environment. The right solution may be better cleaning, a different adhesive, improved pressure control, longer dwell time, a better joint design or a more suitable tape construction.
|
